UV Scan MACS

The UV Scan MACS measurement system provides accurate and reproducible UV dose measurement for laboratories and industrial applications. Its patented technology combines photophysics and optics, ensuring maximum reliability and user-friendly operation.

The system consists of macsStrips test strips and the macsReader reading unit.

The use of the UV Scan MACS guarantees process reliability and product quality, significantly reducing material waste.

Learn more here

Easy Handling Precise Results

Calibration: stick macsStrip to the substrate and start calibration with macsReader.
UV exposure: irradiate the substrate with macsStrip in the UV system.
Measurement: macsReader determines the UV dose applied and shows the dose value (mJ/cm²) on the display.

UV Scan MACS Tutorial Sheetfed

UV Scan MACS Tutorial R2R

macs Strips

Flexible UV measurement strips with a self-adhesive backing, designed for direct UV dose measurement on the substrate.

- Suitable for horizontal and vertical web paths, roll-to-roll applications and hard-to-reach areas
- Easy to use and handle: storage under normal room conditions

macsStrips Product Sheet

macs Reader

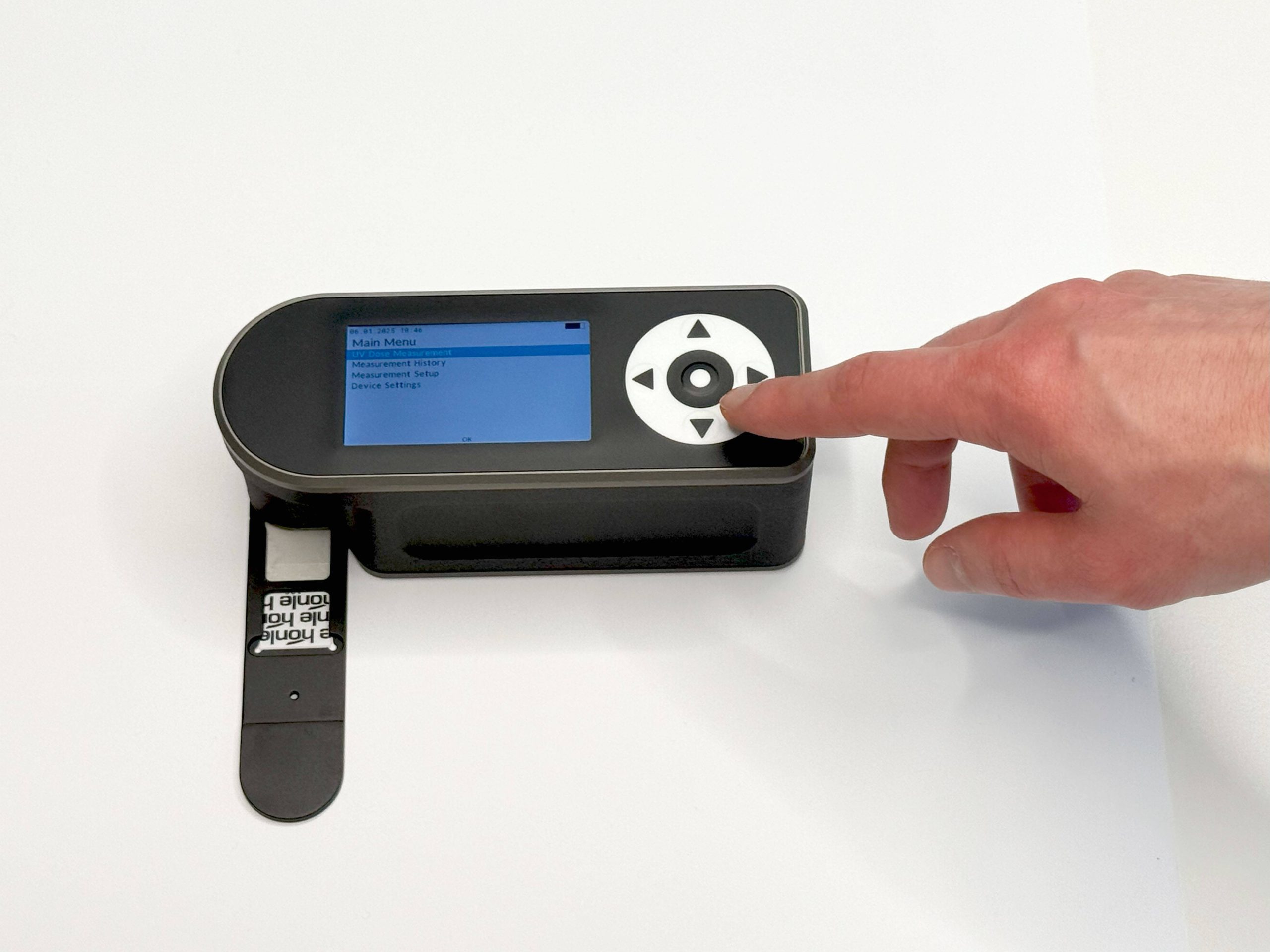

Reading device for macsStrips

Industrial grade device with stencil for correct measurement positions
Storage of measurement results on the device (offline, not cloud-based) for sustainable quality control

macsStrips Quick Start Guide

PC Software

macsReader 2.1 – Data Exporter v1.0.2

macsReader 2.1 – Firmware Updater v.1.0.4

FAQs

You have questions about our products? – Find the answers here.

1. What happens during the calibration?

The calibration is an essential part of the measurement routine and should always be conduct for optimal results. Through it, the current condition of the relevant strip is assessed and used as a reference for the subsequent measurement. To do this, an unexposed strip will be irradiated with UV light in order to determine the maximal measurable dose.

2. Does the calibration have an influence on the measurement results?

Yes, the calibration improves the precision of the measurement results. Through calibration, small deviations, e.g. from production tolerances or outside influences, can be reliably accounted for. This ensures that each strip is optimally tuned for each measurement.

3. What can I do when I've forgotten to calibrate?

Unfortunately, an already exposed strip cannot be retroactively calibrated. In this case, the measurement results should be viewed with caution and, even better, the measurement should be repeated.

Multiple levels of access rights will be available in future software versions. Then, calibration can only be skipped by users with expanded rights (e.g. in manager mode) – this is not possible anymore in operator mode. This ensures that the calibration is conducted before every measurement. The corresponding function is currently under development.

4. Does the background have an influence on the measurement result? Can this invalidate the result?

As a rule, the background has no significant influence on the measurement result, as the measurement strips absorb the UV radiation almost completely. Reflection from the background and, therefore, multiple exposures are thereby largely prevented.

Only in extreme cases – e.g. extremely reflective or metallized surfaces – will there be minimal deviations, as the UV radiation not directly incident on the measuring strip can also be detected via multiple reflection.

5. How strongly should the strips be pressed down?

Pressing the strips down with normal strength is enough. The adhesive is very strong, so no extreme pressure is necessary.

6. Is it okay to touch the strip with my fingers?

Yes, the measurement strips can be used without gloves. Just use the integrated grip tab – this is the area with logos and no adhesive. However, avoid touching the measurement area in the middle, since even a little contamination can influence the measurement results. You can find photos in the operating instructions that show exactly which areas can be touched – and which shouldn’t be.

7. Can I use the strip multiple times?

No, an already irradiated strip can not be used again.

8. Can I measure without the stencil?

For optimal results, we recommend that the stencil always be used. If a measurement without the stencil is necessary, please note that there should be at least a 1 cm gap between the calibration and measurement points. Also, to avoid measurement errors, only the middle of the measurement strip should be used.

9. Can I conduct multiple measurements and form an average value?

Currently, you must calculate the average from multiple measurements yourself. We are currently testing the possibility of integrating this function into future software versions; however, a specific date for implementation cannot yet be given. Please be aware that the strips are not intended for multiple measurements, as the use of the stencil guide is recommended for precise results, ensuring precise positioning and a consistent quality of measurement.

10. Why is the lamp in my system not shown in the measuring device?

Please check the Product information to see whether updates are available. Alternatively, you can select a lamp type that is closest to your lamp.

11. Why are the strips I purchased not shown in the measuring device?

Please perform the latest software update in order to store the strips in the device. You can download the update on our Product information.

12. Are there any strips that work for LED sources?

Strips for LEDs are currently in development. Don’t miss the product launch − regularly check the Product information or follow us on social media, such as on LinkedIn.

13. What can I do when "too low" or "too high" is displayed during the measurement results?

Such a notification means that the measured dose is outside of the measurement range of the strip.

“Too low” indicates that the dose is lower than recommended – in this case, the dose should be increased by lowering the web speed, increasing the lamp power or using additional lamps, for example.
“Too high” means that the dose is higher than recommended – in this case you should take appropriate countermeasures, such as using a faster web speed, reduced lamp power or using fewer lamps.
For assistance in selecting appropriate test parameters, please refer to the diagram in the Quickstart Guide or on the Product information.

14. What does "MACS" in the product name mean?

MACS stands for “Mobile Activation Curve Setup”. The expression refers to the central measurement principle of the system: the UV dose is determined by analyzing the activation curve of the strip’s phosphorescence.

15. What does "Time-Out" mean?

There was no measurement value detected within 10 seconds. Possible causes and fixes:

Ensure that the measurement is performed directly on the sensor area.
Check whether the test strip has been overexposed and replace it if so.
Calibration and measurement cannot be performed on the same location on the strip – each step needs a new area. Use the stencil as a guide.
